Aluminum Foil for Transformer
Aluminum Foil for Transformer
Aluminum Foil for Transformer

Aluminum Foil for Transformer

Thickness: 0.2-3.0MM
Width: 0-1500MM
Length: As per required
Product Description

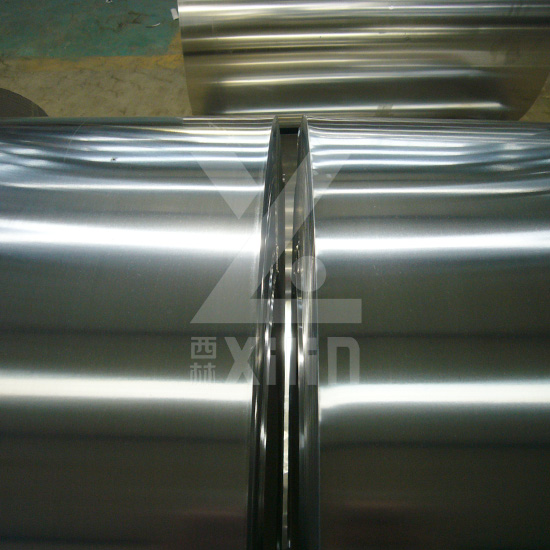

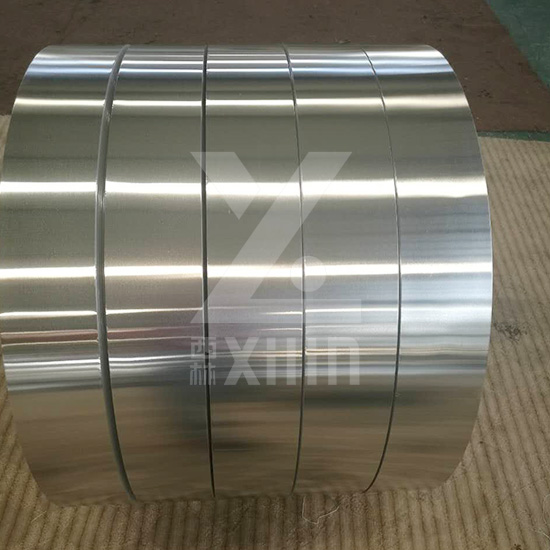

1060/1050/1350/1370 aluminum foil / strip for transformer are made of high quality pure aluminum. They are soft with high conductivity, flat surface, smooth edge and no burr. They are the key raw materials for making Transformer winding. Using qualified Aluminum strip, transformer will have the advantages such as compact in size, light weight, nice insulation properties, anti-flame, pollution free, low partial discharge, moisture resistant, stable operation, quiet and low maintenance cost etc.
Aluminum alloy grade 1060/1050/1350/1370
Temper O
Thickness(mm) 0.2~0.3 0.4~0.8 1.0~2.0 2.0~3.0
Thickness Tolerance(mm) ±0.015 ±0.02 ±0.04 ±0.06
Width(mm) <100 100-200 201-500 501-1500
Width Tolerance(mm) ±0.1 ±0.2 ±0.2 ±1
ID 75mm, 150mm, 200mm, 300mm, 400mm, 508mm
OD As per clients’ request
Edge Round edge, burr free

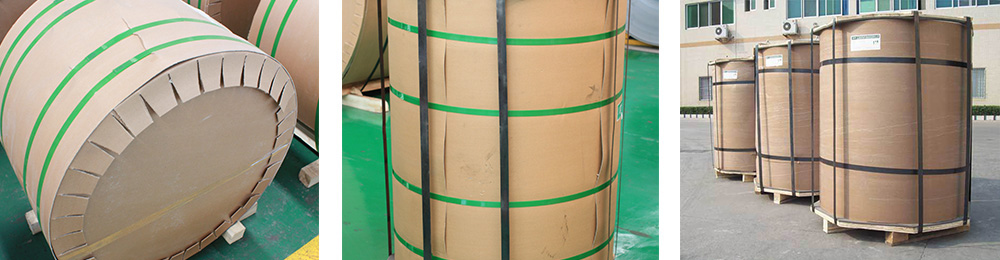

Package Export standard, eye to sky or eye to wall
Surface quality The surface should be clear, no oil, crackle, wave, etc.
Mechanical Property
U.T.S Density in 20℃ Conductivity in 20℃
55-95N/mm2 2.703kg/dm3 ≥61%IACS
